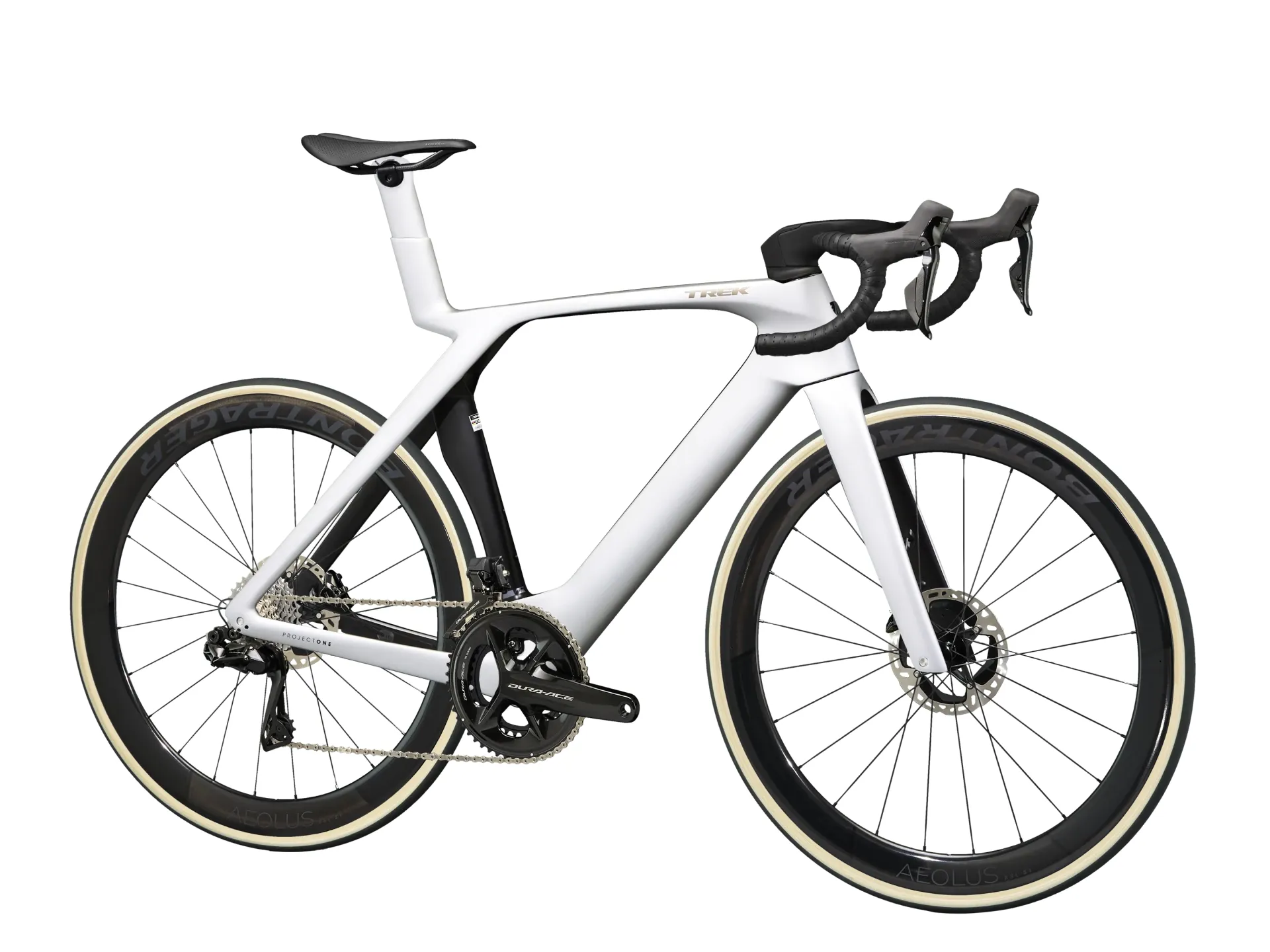

Trek Madone SLR 9 Di2 Gen 7 Road Bike 2023

This road race bike is built with an 800 Series OCLV Carbon frame and new IsoFlow technology that adds an aerodynamic advantage, cuts weight and smooths the road ahead. It’s built from the ground up with cream-of-the-crop components for a smooth and light ride, like Shimano’s wireless electronic Dura-Ace Di2 drivetrain and carbon wheels with a deep rim for even more aerodynamic gains.

All-new aerodynamic Kammtail frame shapes, bar/stem design and rider position make the Madone SLR our fastest road race bike yet.
Never-before-seen IsoFlow technology specifically designed for the seventh-generation Madone SLR shaves weight, improves aerodynamics and smooths your ride.
Super lightweight 800 Series OCLV Carbon and a new lightweight design make this our lightest Madone disc ever.
A newly optimised bar/stem that’s 3 cm narrower in the hoods than the drops offers a more comfortable and ergonomic riding position for faster racing, improved aerodynamics and ultimate control. Use the same bar/stem size you’re used to – if you normally ride with a 42 cm bar/stem, opt for 42 cm in the drops and 39 cm in the hoods.
Every element of this bike is part of a greater whole. It has invisible cable routing, aero cockpit, hidden seat mast and more.

Key Features:

• 800 Series OCLV Carbon Frame:Trek’s lightest carbon laminate combines aero performance with low weight
• Bontrager Aeolus RSL 51 Wheels:Tubeless-ready, 51mm deep-section wheels to slice through the air
• Shimano Dura-Ace Di2:featuring a 12-speed drivetrain that has wider range cassettes and smaller jumps between gears, allowing riders to easily find the right cadence.

Specifications:

• Frame:800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
• Fork:Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12×100 mm thru axle
• Number of Gears:24
• Gear Shifters:Shimano Dura-Ace Di2 R9270 12 Speed
• Chainset:Shimano Dura-Ace R9200, 165-175 mm
• Chainrings:52/36T
• Rear Cassette:Shimano Dura-Ace R9200, 11-34, 12-speed
• Chain:Shimano Dura-Ace/XTR M9100, 12 speed
• Front Derailleur:Shimano Dura-Ace Di2 R9250 12 Speed
• Rear Derailleur:Shimano Dura-Ace Di2 R9250 12 Speed
• Bottom Bracket:Praxis, T47 threaded, internal bearing
• Pedals:Not Included
• Front Wheel:Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle
• Rear Wheel:Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11 freehub, 142x12mm thru axle
• Front Tyre:Bontrager R4 320, 700x25c
• Rear Tyre:Bontrager R4 320, 700x25c
• Brakes:Shimano Dura-Ace hydraulic disc brake
• Handlebars:Madone Integrated handlebar/stem, OCLV Carbon, 380mm width, 80mm stem length
• Handlebar Tape:Bontrager Supertack Perf tape
• Headset:Integrated
• Stem:Integrated, see handlebar
• Saddle:Bontrager Aeolus P2 RSL, carbon rails, 145 – 155 mm width
• Seatpost:Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, short/tall length
• Weight:54 – 7.10 kg / 15.66 lbs
